b 仓库触发 a 仓库的流水线
通过repository_dispatch
方式,并且添加types
参数,b 仓库通过POST
方式添加参数event_type
实现。
a 仓库流水线
1 2 3 4 5 6 7 8 9 10
| name: a on: workflow_dispatch: repository_dispatch: types: [webhook] jobs: webhook: runs-on: ubuntu-latest steps: - name: console run: echo Hello, world!
|
API 触发流水线调用格式:
1 2 3 4
| curl -X POST https://api.github.com/repos/:owner/:repo/dispatches \ -H "Accept: application/vnd.github.everest-preview+json" \ -H "Authorization: token TRIGGER_TOKEN" \ --data '{"event_type": "TRIGGER_EVENT"}'
|
1 2 3 4
| `ower`:用户名 `repo`:仓库 `TRIGGER_TOKEN`:token `TRIGGER_EVENT`:自定义事件(即上面 a 仓库的 repository_dispatch types 里的内容)
|
b 仓库流水线
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
| name: b on: workflow_dispatch: push: branches: - dev jobs: deploy: runs-on: ubuntu-latest steps: - name: WebHook run: | curl -X POST https://api.github.com/repos/clzczhc/a/dispatches \ -H "Accept: application/vnd.github.everest-preview+json" \ -H "Authorization: token ${{ secrets.TOKEN }}" \ --data '{"event_type": "webhook"}'
|
token 生成及配置

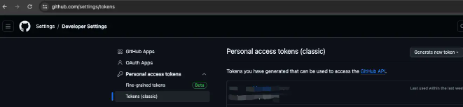

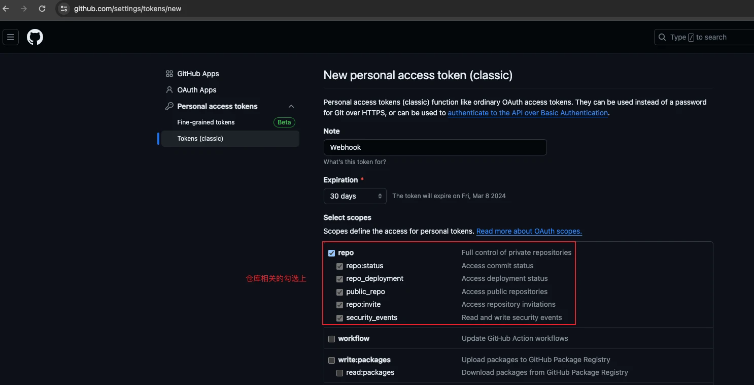

settings -> Developer Settings -> Tokens -> Generate new token
复制 token,应该是ghp_xxx

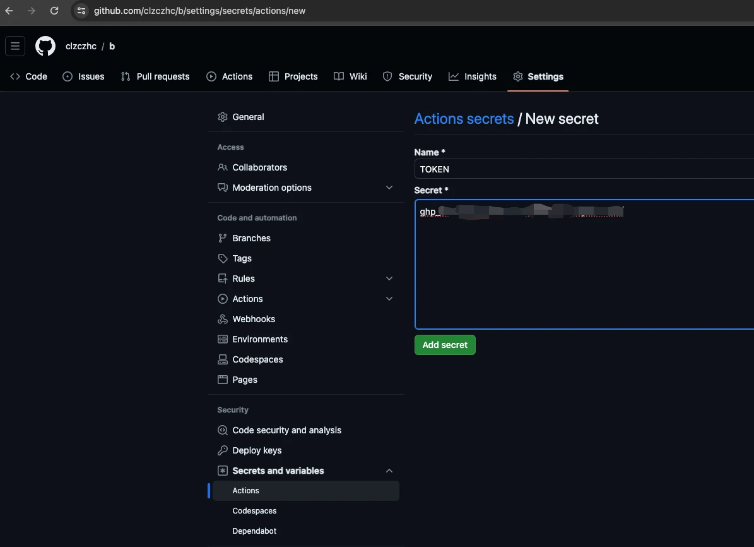

这种形式。去 b 仓库添加 Secret

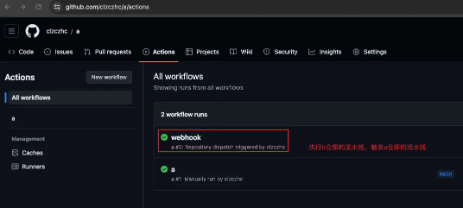

结果:
参考:
https://cloud.tencent.com/developer/article/1868010
通过第三方 action 实现
repository-dispatch
b 仓库新流水线:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
| name: b on: workflow_dispatch: push: branches: - dev jobs: deploy: runs-on: ubuntu-latest steps: - name: Repository Dispatch uses: peter-evans/repository-dispatch@v3 with: token: ${{ secrets.TOKEN }} repository: clzczhc/a event-type: webhook
|
传递 b 仓库的分支信息
一些特殊场景可能会需要传递仓库触发分支信息,比如 b 仓库推了个分支,想要跑流水线测试,b 仓库触发 a 仓库的流水线的话,默认是不会传递当前分支信息的。
首先是传递信息,通过上面第三方 action 提供的参数client-payload
传递。
1 2 3 4 5 6 7
| - name: Repository Dispatch uses: peter-evans/repository-dispatch@v3 with: token: ${{ secrets.TOKEN }} repository: shimo-open/shimo-doc event-type: gen_doc client-payload: '{"ref": "${{ github.ref }}"}'
|
a 仓库流水线添加
1 2 3 4 5 6 7

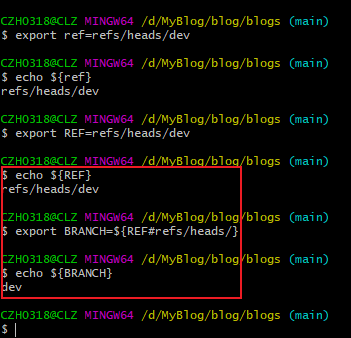

| export REF=${{ github.event.client_payload.ref }} [[ ! -n $REF ]] && export REF=dev echo "REF: ${REF}" export BRANCH=${REF#refs/heads/} echo "${BRANCH}"
git checkout ${BRANCH}
|
export BRANCH=${REF#refs/heads/}
这部分是因为GITHUB_REF
是refs/heads/main
这种结构,利用 shell 命令得到后面的分支命令
